Gktech Toyota 86 / GR86 / BRZ Rear Suspension Package

Original price $4,299.00 - Original price $4,299.00
Original price
$4,299.00
$4,299.00 - $4,299.00
Current price $4,299.00

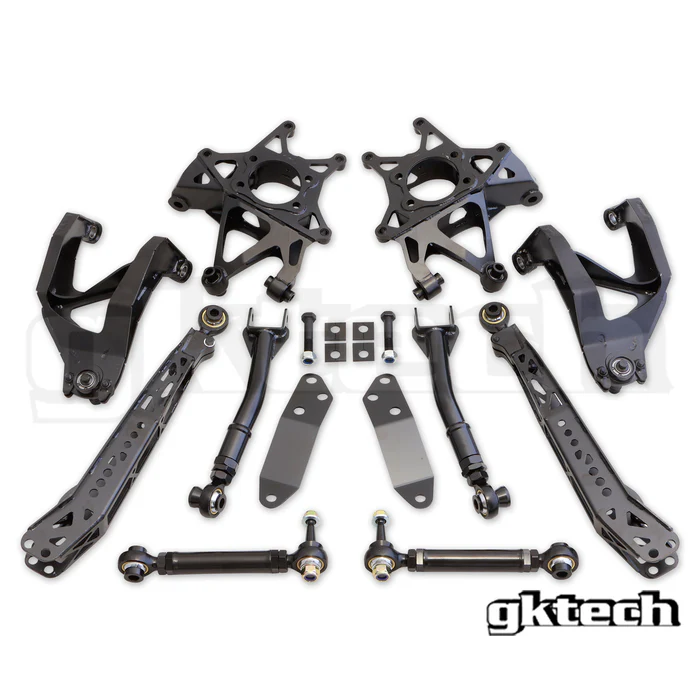

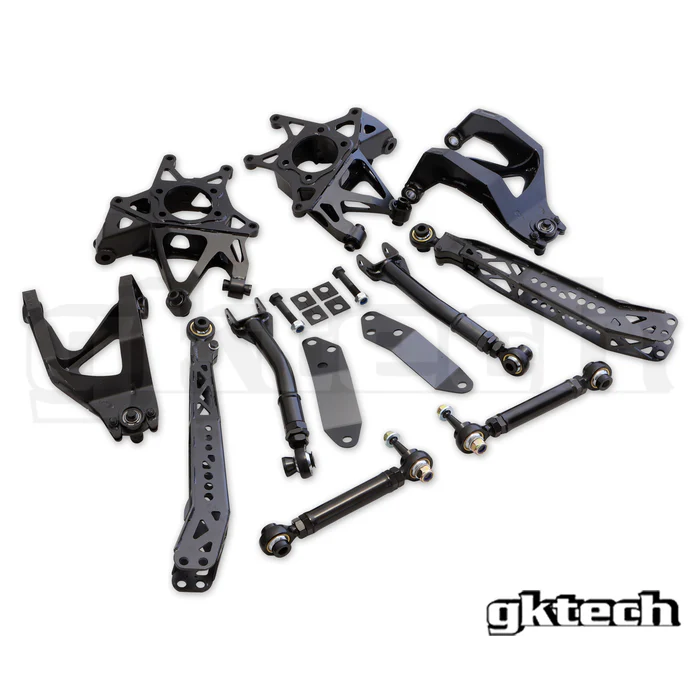

This kit includes everything shown in pictures and in the description below:

The GKTECH rear suspension package is designed for those that are looking for a combo as opposed to piecing a kit together one by one and for buying as a combo we are offering a 20% discount.

This listing is for the 3 main components being upper camber, rear lower control arm and rear drop knuckles. We are offering these as a package deal which comes at an additional 20% off our listed price for the items vs when sold on their own.

REAR KNUCKLES
These include a provision for dual calipers to run a hydraulic e-brake and whether you have Brembo, GT, or GTS calipers, our knuckle is fully compatible. High quality PTFE lined spherical bearings throughout and have all new kinematics to drastically improve anti-squat, bump steer, camber gain curves and raised roll centre height. In built ABS sensor provision for OEM compatibility, weight reduction over the OEM upright and constructed from high-strength 4130 ChroMoly!

For more information
au.gktech.com/products/86-gr86-brz-rear-knuckles-with-all-new-kinematics

REAR UPPER CAMBER ARMS
Our upper camber arms allow adjustment of the upper arm, fixing the issue of camber change when lowering the vehicle. As well as eliminating the OEM rubber bushes, which allow zero flex and have zero chill when in operation. These are replaced with super smooth spherical joints, allowing the arm to operate on its correct pane! Our design is unique in that the arm can be adjusted insitu and there are no rod ends in bending.

Designed with the MOST amount of driveshaft clearance, a common issue found when using rear drop knuckles on these cars!

For more information
au.gktech.com/products/gt86-ruca

REAR LOWER CONTROL ARMS
Our on car adjustable Rear Lower Control Arms (RLCA's) allow for 55mm of track adjustment, motion ratio adjustment and can be used to lower your car 25mm.

Adjustable rear lower control arms allow adjustment of the rear multi-link suspension. Typically, adjustable LCA's can be adjusted to alter camber however we have incorporated some extra features.


For more information
au.gktech.com/products/86-gr86-brz-rear-lower-control-arms-rlcas

REAR TRACTION ARMS + TRACTION MOD
The  traction mod + arm combo is a great way to gain more traction under throttle. Our combo includes an easy to bolt on double sheer relocation bracket in addition to an adjustable traction arm to fine tune your alignment.

Rear traction rods allow adjustment of the rear multi-link suspension. They can be adjusted to eliminate bump steer and alter other rear suspension traction settings to improve suspension response.

For more information
au.gktech.com/products/86-gr86-brz-traction-mod-arm-combo


REAR TOE ARMS
Adjustable rear toe arms give you the ability to adjust and tune your vehicle's rear toe.

The lengths on these rear toe arms are fully adjustable to your specs when doing an alignment and with the right adjustments, straight line and cornering of your vehicle will be improved.

For more information
au.gktech.com/products/zn6-86-brz-rear-toe-arm

ECCENTRIC LOCK OUT KIT
The eccentric lockout kit replaces the adjustable toe arm bolts that are prone to slipping under hard driving conditions and ensures that your wheel alignment stays where it was set.

Fixed adjustment allows for +/- 4.85mm of toe change and -0.51 > -1.81 degrees of camber change

For more information
au.gktech.com/products/zn6-86-brz-eccentric-lockout-kit

Pre-Order Item

This item is currently on backorder and is shipped within 24 hours of stock replenishment. For an accurate ETA of this product, please contact our staff.
