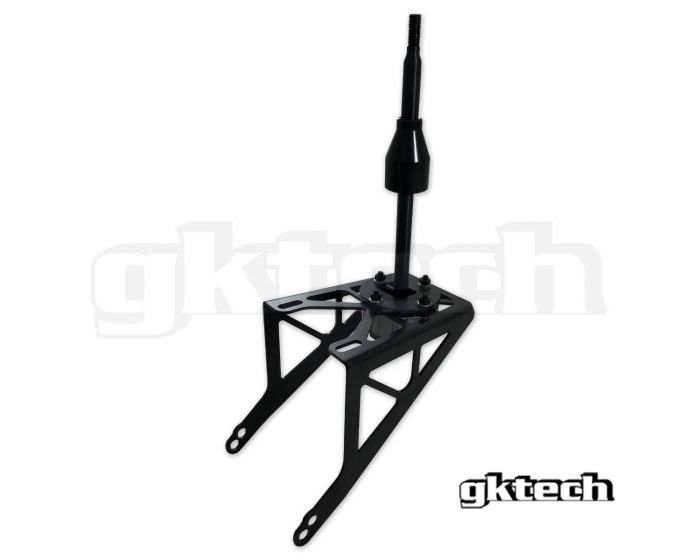

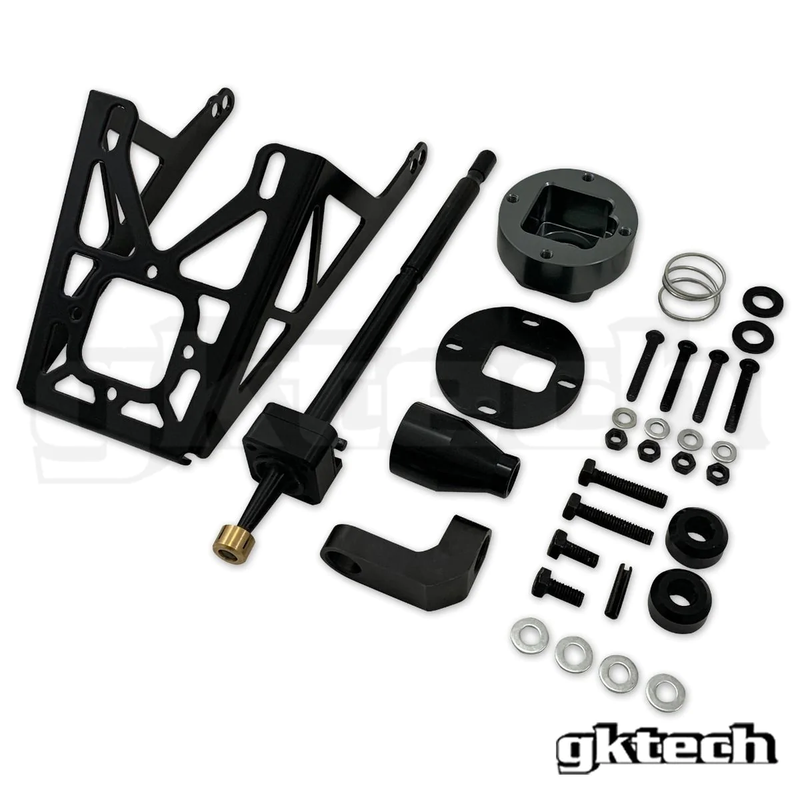

V2 Z33 350Z/Z34 370Z GEARBOX SHIFTER RELOCATION SETUP
The V2 GKTECH Z33/Z34 gearbox shifter relocation setup has been designed as a bolt on solution whenfitting cd009, cd00a gearboxes to S and R chassis Nissans (although may fit others) and not having the shifter sit back 6" too far. Our shifter setup sits just 85mm from the rear of the bolt holes on the back of the gearbox.
Designed from scratch with over 200 hours spent modelling, prototyping and testing we are happy with the final result. This design DOES feature reverse lockout.
- CAD designed
- No OEM parts required to fit this to the rear of a Z33 350z/Z34 370z gearbox
- Features reverse lockout

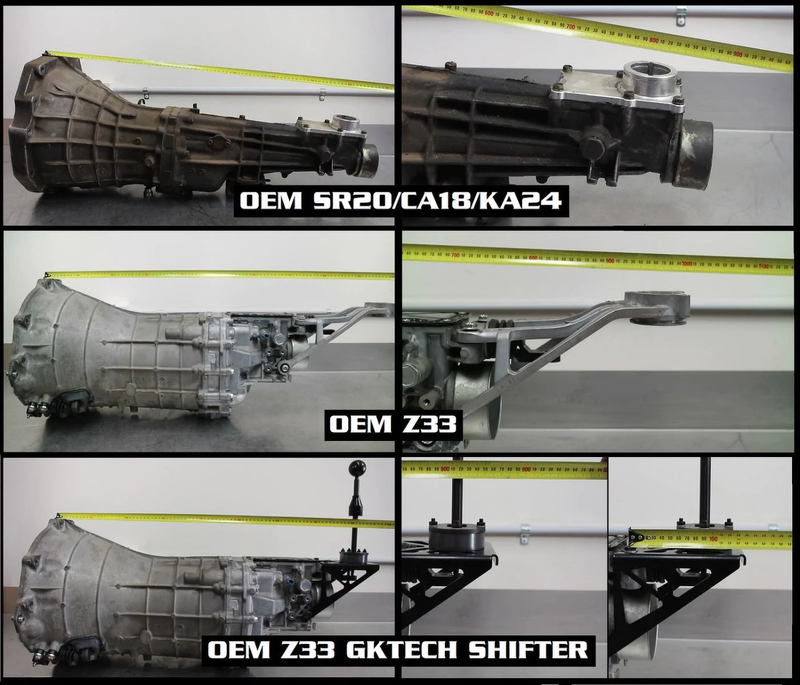

- Shifter sits just 85mm from the rear of the bolt holes on the back of the gearbox
- Thread for shifter is M10x1.25 (same as S13/S14 SR20 Nissan and many others)
Want more technical information, product benefits and a look into the design process? Click here:
https://au.gktech.com/news/v2-z33-z34-gearbox-shifter-relocation-setup/
