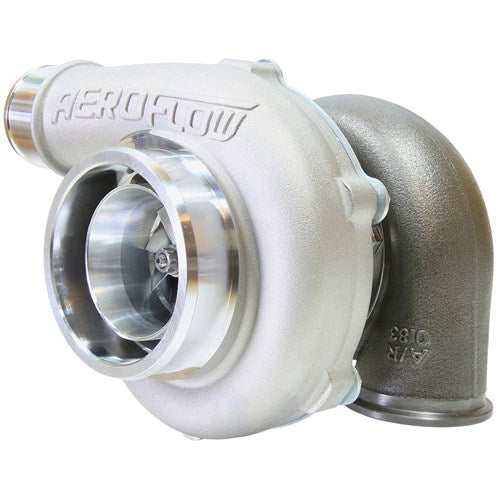

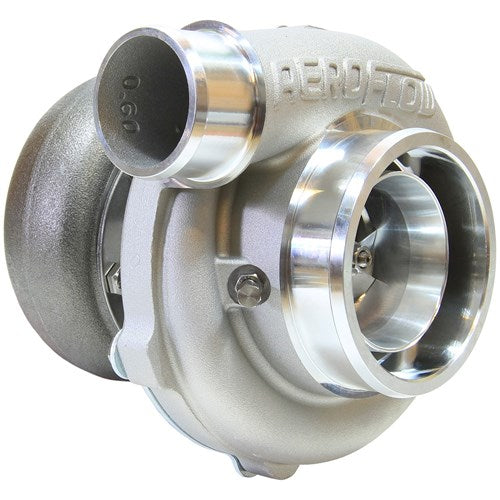

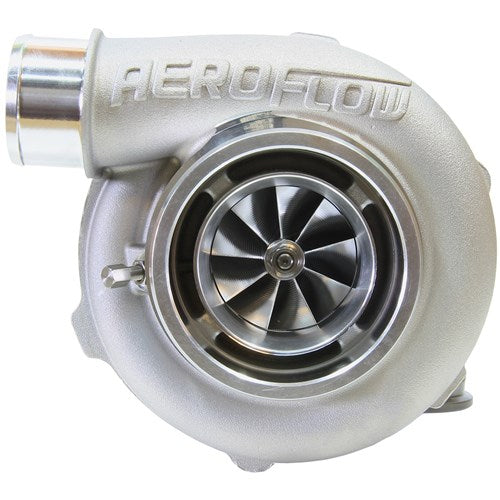

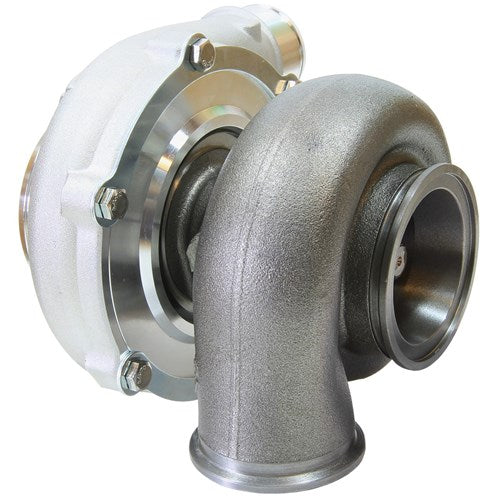

BOOSTED 5855 V-Band Reverse Rotation Turbocharger Specifications

This is a reverse rotation turbocharger for applications that want the perfect twin turbo installation or a single reverse rotation turbo with installation restrictions. Matches Boosted 5855 (AF8005-3033) standard rotation turbocharger

Recommended horsepower rating: 400-750HP
Recommended engine displacement: 1.8L to 3.0L

- Dual ceramicball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensorsold separately, AF8050-1010)
- External wastegate sold separately
- Turbo drain gasket and-4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- SiMo-nodular cast ironrear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-builtrestrictor
- 38mm bolt centre turbo drain flange withM8 x 1.25mm thread size

CompressorSpecifications
Inducer: 58mm
Exducer: 76.2mm
Extended Tip: 80.42mm
A/R: 0.60
Compressor Inlet: 4" Slip fit
Compressor Outlet: 2" Slip fit

Turbine Specifications
Inducer: 60mm
Exducer: 55m
A/R: 0.83
Turbine Inlet Flange: V-Band (AF8080-1016)
Turbine Outlet Flange: V-Band (AF8080-1000)
