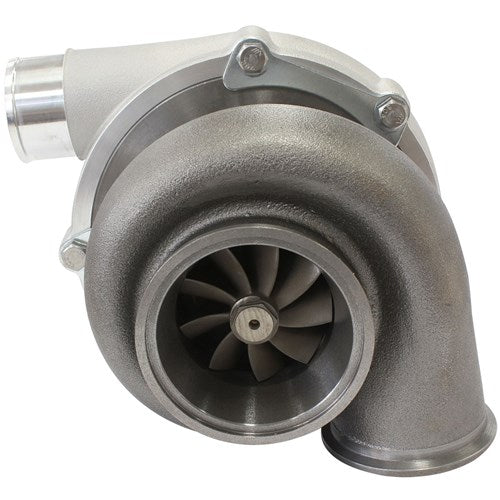

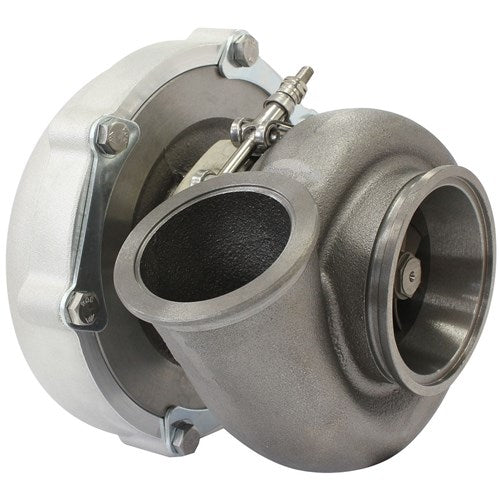

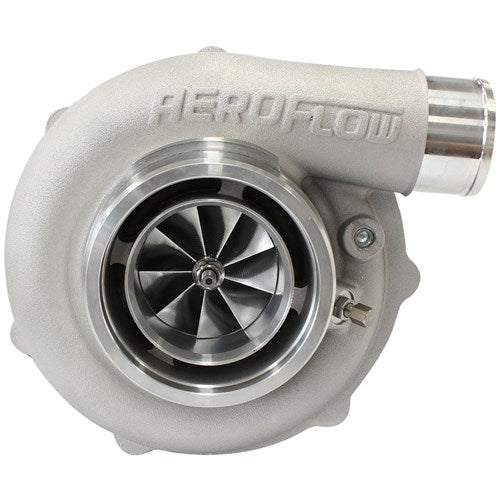

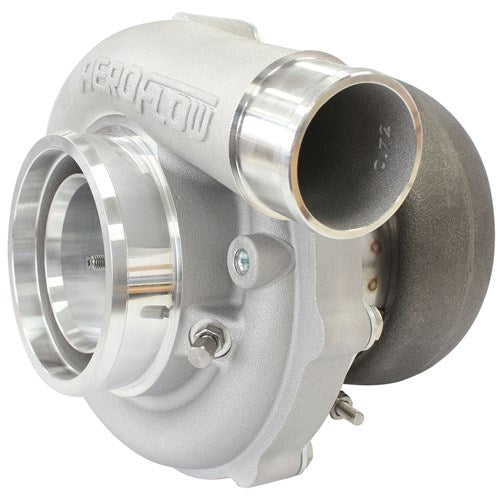

BOOSTED 6262 V-Band Turbocharger Specifications

Recommended horsepower rating:  550-900HP
Recommended engine displacement:  2.0L to 5.5L

- Dualceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Portedshroud compressor cover
-Speed sensor port included in compressor cover (Speed sensorsold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular castiron rear housing
- V-Band turbine outlet flange
- 4 x M14 x 1.5mm coolant ports (Must install water lines on opposite sides of the core)
- 7/16"-24 oil feed fittingwith in-built restrictor
- 38mm bolt centre turbodrain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer:  62mm
Exducer:  76.6mm
Extended Tip:  79.42mm
A/R:  0.72
Compressor Inlet:  4" Slip fit
Compressor Outlet:  2.5" Slip fit

Turbine Specifications
Inducer:  68mm
Exducer:  62mm
A/R:  0.83
Turbine Inlet Flange: V-Band (AF8080-1016)
Turbine Outlet Flange:  V-Band (AF8080-1000)

Wastegate
External wastegate
