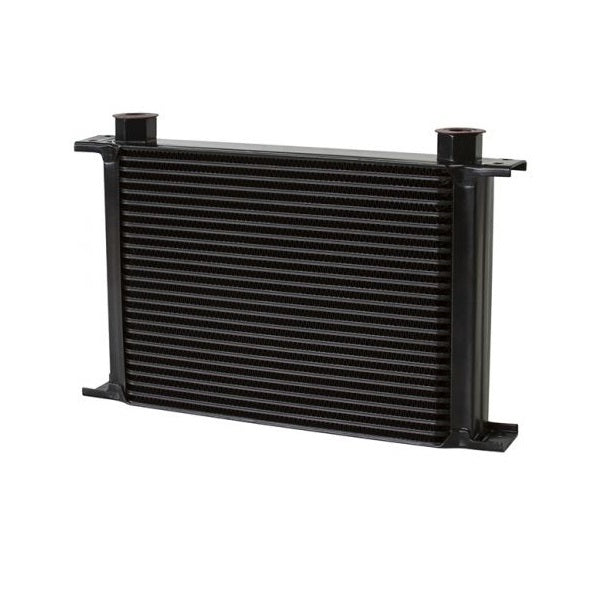

Aeroflow 19 Row Universal Oil Cooler

Aeroflow offers a tremendous selection of the industry's highest quality coolers in a wide range of applications and profiles. These stack plate (modular style) coolers are fully brazed on all contact surfaces inside and out, further more they have a brazed seam that withstands vibrations and pulsations in the toughest environment. Any performance vehicle can benefit from an Aeroflow Cooler. Motor homes, tow vehicles, passenger cars and even motorcycles can realize extended engine and/or transmission efficiency and life.

Technical Specifications:

Rows: 19
Depth: 51mm
Length: 330mm
Height: 146mm
Connections: -10 Female ORB Threads.

• For use in engines, transmissions, hydraulic systems, etc.
• Max working pressure is 10 Bar (1 MPa or 145 PSI)
• Burst pressure is 25 Bar (2.5 MPa 362 PSI)
