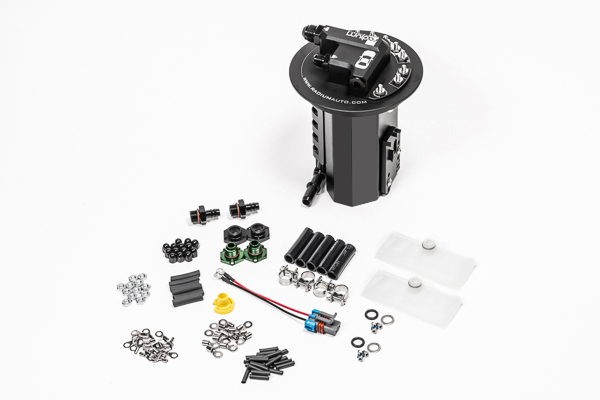

Radium Fuel Pump Hanger - Toyota GR86 / Subaru BRZ 2022+ - 20-1074

20-1074 COMPATIBILITY
2022+ Toyota GR86
2022+ Subaru BRZ

OVERVIEW
The new Radium Engineering fuel pump hanger has been redesigned for improved fuel collection and for ease of installation. It completely replaces the factory in-tank fuel pump module and allows 1 or 2 aftermarket fuel pumps to be used. The OEM level sender is retained in order to maintain factory functionality.

FEATURES
-8AN ORB to 8AN Male Pump-Out Fitting
-6AN ORB to 6AN Male Return Fitting
-Collector Box with 1-Way Fill Valve
-Venturi Jet Pump Siphon
-High Current Electrical Connections
-Anodized Fuel Level Sender Mount
-Twin Fuel Pump Compatibility
-Brushless Pump Compatibility
-Single Merged Fuel Pump Outlet
-Stainless Hardware and Clamps
-Alternative Fuel Compatibility
-New Anti-rotation Electrical Terminals

PREVENTING FUEL STARVATION
The kit includes a 1-piece anodized aluminum collector box that makes installation a breeze and keeps fuel trapped around the pump inlet(s). There is a 355 LPH 1-way fill valve incorporated in the bottom of the collector that allows fuel in, but not out. Furthermore, the collector box is constantly replenished with fuel returning from the pressure regulator.
